Fieldclix Next VPN Install

Modified on Mon, Nov 4 at 11:47 AM

TABLE OF CONTENTS

Receive Files & Your Company’s Credentials & Codes via Email

You will be sent the following items:

Navigate to your web browser and open the link provided to download the VPN installer.

You will need to send a request to Fieldclix to obtain the necessary files.

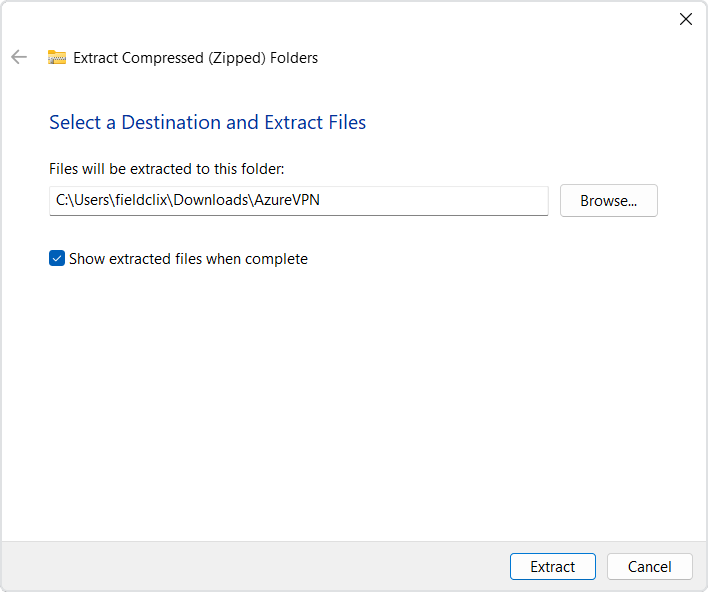

Right click on downloaded «AzureVPN.zip» archive and select Extract All. In new opened window

mark «Show extracted files when complete» and click Extract.

Open «FieldCLIXVPN.pfx» (extracted file from «AzureVPN.zip») and install the certificate following

these steps:

Select Store Location = «Current user», then go Next.
Leave File name without changes and go Next.
Specify Password provided and mark Include all extended properties (if it empty), then go Next.
Select Certificate Store = «Automatically select the certificate store base on the type of certificate», then go Next.
Click Finish.
In a popup «Security Warning» message, click Yes.

Download the latest version of the Azure VPN Client using the following link: https://go.microsoft.com/fwlink/?linkid=2117554

System Requirements: OS Windows 10 version 17763.0 or higher, Windows Server 2022.

2. Open the Azure VPN Client.

3. Click + on the bottom left of the page, then select Import.

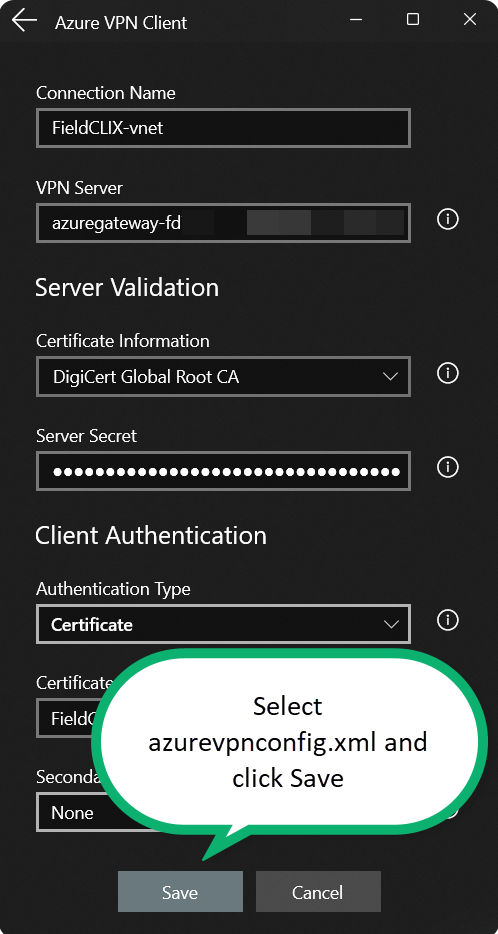

4. In the opened window, navigate to the «AzureVPN» folder where «azurevpnconfig.xml» is located

(extracted file from «AzureVPN.zip»), select it, then click Open. In new connection form where all

the settings are filled click Save.

Before you start using Fieldclix app, connect the VPN:

1. Open the Azure VPN Client.

2. Find «FieldCLIX-vnet» in the VPN connections list and click Connect.

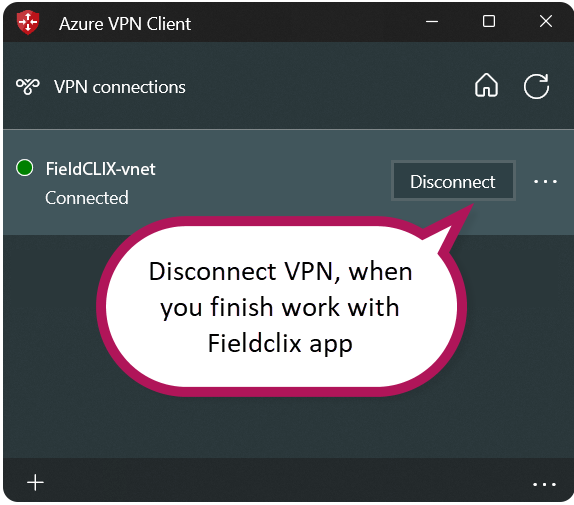

When you finish work with Fieldclix app open to disconnect the VPN, click on Disconnect.
